ichinorm.c File Reference

#include <stdlib.h>
#include <string.h>
#include "mode.h"
#include "ichinorm.h"
#include "ichierr.h"
#include "bcf_s.h"

Include dependency graph for ichinorm.c:

Data Structures
struct	tagAtPair
struct	tagDerivAttachment
struct	tagRing2Chain

Macros
#define	DERIV_BRIDGE_O   0x0001 /* R1-O-R2 => R1-OH + HO-R2 */
#define	DERIV_BRIDGE_NH   0x0002 /* R1-NH-R2 amine */
#define	DERIV_AMINE_tN   0x0004 /* R1-N(-R2)-R3 tertiary amine */
#define	DERIV_RING_O_OUTSIDE_PRECURSOR   0x0008 /* -O- in a ring */
#define	DERIV_RING_NH_OUTSIDE_PRECURSOR   0x0010 /* -NH- in a ring */
#define	DERIV_X_OXIME   0x0020 /* comment out to disable */
#define	DERIV_UNMARK   0x0040 /* unmark the cut */
#define	DERIV_DUPLIC   0x0080 /* duplicated disconnection */
#define	DERIV_RO_COX   0x0100 /* alcohol derivatives: R-O--C(=O)C[n]F[2n+1] 0<n<4, R-O--C(=O)CH3, R-O--C(=O)-Phenyl */
#define	DERIV_RING_DMOX_DEOX_N   0x0200 /* =N- in a ring: /-O--CH2-\ DMOX, DEOX */
#define	DERIV_RING_DMOX_DEOX_O   0x0400 /* -O- in a ring: R-C=N--------C<2Me or 2Et */
#define	DERIV_RING2_PRRLDD_OUTSIDE_PRECUR   0x0800 /* alcohol derivatives: R(=O)-N<C4H4 5-memb ring Pyrrolidides; replace -N< with -OH */
#define	DERIV_RING2_PPRDN_OUTSIDE_PRECUR   0x1000 /* alcohol derivatives: R(=O)-N<C5H5 6-memb ring Piperidines; replace -N< with -OH */
#define	DERIV_DANSYL   0x2000 /* alcohol derivatives: R-O--SO2-C10H5-N(CH3)2 => R-OH */
#define	DERIV_RING_DMOX_DEOX   (DERIV_RING_DMOX_DEOX_O | DERIV_RING_DMOX_DEOX_N)
#define	DERIV_RING_OUTSIDE_PRECURSOR   (DERIV_RING_O_OUTSIDE_PRECURSOR | DERIV_RING_NH_OUTSIDE_PRECURSOR)
#define	DERIV_RING2_OUTSIDE_PRECUR   (DERIV_RING2_PRRLDD_OUTSIDE_PRECUR | DERIV_RING2_PPRDN_OUTSIDE_PRECUR)
#define	DERIV_AT_LEN   4
#define	DERIV_NOT   0x1000 /* cannot be a derivatization agent atom */
#define	MAX_AT_DERIV   13 /* max. num of heavy atoms in removed derivatizing agent: RO-C(O)PheF5 */
#define	NOT_AT_DERIV   99 /* DERIV_AT::num; rejected as > MAX_AT_DERIV */
#define	MIN_AT_LEFT_DERIV   2 /* was 3 before 2013-11-12; min num heavy atoms in derivative precursor = MIN_AT_LEFT_DERIV-1 */
#define	NO_ORD_VAL   0x0037 /* not used */
#define	CFLAG_MARK_BRANCH   1 /* for main derivative traversal */
#define	CFLAG_MARK_BLOCK   2 /* for block detection */
#define	CFLAG_MARK_BLOCK_INV   ((char)~(CFLAG_MARK_BLOCK)) /* for block detection */
#define	COUNT_ALL_NOT_DERIV   1 /* 1=> count ALL atoms that are not in deriv. agents */
#define	IS_DA_NUM_LE(DA, I, MX)   (((DA)->typ[I] && ((DA)->typ[I] & DERIV_UNEXPADABLE) == (DA)->typ[I]) || (DA)->num[I] <= (MX))
#define	OX_RING_SIZE   5
#define	PRRLDD_RING_SIZE   5
#define	PPRDN_RING_SIZE   6
#define	MIN_PRRLDD_PPRDN_RING_SIZE   PRRLDD_RING_SIZE
#define	MAX_PRRLDD_PPRDN_RING_SIZE   PPRDN_RING_SIZE
#define	DERIV_RING   DERIV_RING_OUTSIDE_PRECURSOR
#define	UNDERIV_MAX_NUM   512 /*max. number of records in szUnderivList */
#define	UNDERIV_LEN   128
#define	UNDERIV_LEN2   128
#define	ALLOC_AP
#define	UNDERIV_LIST_LEN   2048
#define	UNDERIV_LIST_LEN2   2048
#define	R2C_EMPTY   127

Typedefs
typedef struct tagAtPair	R2C_ATPAIR
typedef struct tagDerivAttachment	DERIV_AT
typedef enum tagDerivId	DerivId
typedef enum tagDerivBit	DerivBit
typedef int	BIT_UNDERIV
typedef struct tagRing2Chain	R2C_AT

Enumerations
enum	tagDerivId {   DERIV_ID_Acentonate , DERIV_ID_Benzlidene , DERIV_ID_BenzOX , DERIV_ID_BuBorate ,   DERIV_ID_Dansyl , DERIV_ID_DEOX , DERIV_ID_DMOX , DERIV_ID_EtBorate ,   DERIV_ID_EtOX , DERIV_ID_HFB , DERIV_ID_MeBorate , DERIV_ID_MOX ,   DERIV_ID_PFB , DERIV_ID_PFP , DERIV_ID_Piperidine , DERIV_ID_Pyrrolidide ,   DERIV_ID_TBDMS , DERIV_ID_TFA , DERIV_ID_TMS , DERIV_ID_Unknown ,   DERIV_ID_Acetate , DERIV_ID_Benzoate }
enum	tagDerivBit {   DERIV_BIT_Acentonate = 1 << DERIV_ID_Acentonate , DERIV_BIT_Benzlidene = 1 << DERIV_ID_Benzlidene , DERIV_BIT_BenzOX = 1 << DERIV_ID_BenzOX , DERIV_BIT_BuBorate = 1 << DERIV_ID_BuBorate ,   DERIV_BIT_Dansyl = 1 << DERIV_ID_Dansyl , DERIV_BIT_DEOX = 1 << DERIV_ID_DEOX , DERIV_BIT_DMOX = 1 << DERIV_ID_DMOX , DERIV_BIT_EtBorate = 1 << DERIV_ID_EtBorate ,   DERIV_BIT_EtOX = 1 << DERIV_ID_EtOX , DERIV_BIT_HFB = 1 << DERIV_ID_HFB , DERIV_BIT_MeBorate = 1 << DERIV_ID_MeBorate , DERIV_BIT_MOX = 1 << DERIV_ID_MOX ,   DERIV_BIT_PFB = 1 << DERIV_ID_PFB , DERIV_BIT_PFP = 1 << DERIV_ID_PFP , DERIV_BIT_Piperidine = 1 << DERIV_ID_Piperidine , DERIV_BIT_Pyrrolidide = 1 << DERIV_ID_Pyrrolidide ,   DERIV_BIT_TBDMS = 1 << DERIV_ID_TBDMS , DERIV_BIT_TFA = 1 << DERIV_ID_TFA , DERIV_BIT_TMS = 1 << DERIV_ID_TMS , DERIV_BIT_Unknown = 1 << DERIV_ID_Unknown ,   DERIV_BIT_Acetate = 1 << DERIV_ID_Acetate , DERIV_BIT_Benzoate = 1 << DERIV_ID_Benzoate , DERIV_ID_NUMBER }

Functions
int	MarkRingSystemsInp (inp_ATOM *at, int num_atoms, int start)
int	mark_arom_bonds (struct tagINCHI_CLOCK *ic, struct tagCANON_GLOBALS *pCG, inp_ATOM *at, int num_atoms)
void	set_R2C_el_numbers (void)
int	subtract_DT_from_num_H (int num_atoms, inp_ATOM *at)
int	add_inp_ATOM (inp_ATOM *at, int len_at, int len_cur, inp_ATOM *add, int len_add)
int	cmp_r2c_atpair (const void *p1, const void *p2)
int	has_atom_pair (R2C_ATPAIR *ap, int num_ap, AT_NUMB at1, AT_NUMB at2)
int	mark_atoms_ap (inp_ATOM *at, AT_NUMB start, R2C_ATPAIR *ap, int num_ap, int num, AT_NUMB cFlags)
int	UnMarkDisconnectedComponents (ORIG_ATOM_DATA *orig_inp_data)
int	UnMarkOtherIndicators (inp_ATOM *at, int num_atoms)
int	UnMarkOneComponent (inp_ATOM *at, int num_atoms)
int	DisconnectInpAtBond (inp_ATOM *at, AT_NUMB *nOldCompNumber, int iat, int neigh_ord)
int	ExtractConnectedComponent (inp_ATOM *at, int num_at, int component_number, inp_ATOM *component_at)
int	UnMarkRingSystemsInp (inp_ATOM *at, int num_atoms)
int	has_atom_pair_seq (R2C_ATPAIR *ap, int num_ap, AT_NUMB at1, AT_NUMB at2)
int	mark_atoms_cFlags (inp_ATOM *at, int start, int num, char cFlags)
int	unmark_atoms_cFlags (inp_ATOM *at, int start, int num, char cFlags, char cInvFlags)
int	is_C_or_S_DB_O (inp_ATOM *at, int i)
int	is_C_DB_O (inp_ATOM *at, int i)
int	is_C_unsat_not_arom (inp_ATOM *at, int i)
int	is_Aryl (inp_ATOM *at, int outside_point, int attachment_pont)
int	is_Saturated_C (inp_ATOM *at, int attachment_pont)
int	is_C_Alk (inp_ATOM *at, int i, char cFlags)
int	is_Phenyl (inp_ATOM *at, int outside_point, int attachment_point)
int	is_PentaFluoroPhenyl (inp_ATOM *at, int outside_point, int attachment_point)
int	is_Methyl (inp_ATOM *at, int attachment_point)
int	is_Ethyl (inp_ATOM *at, int outside_point, int attachment_point)
int	is_Methyl_or_Etyl (inp_ATOM *at, int outside_point, int attachment_point)
int	is_Si_IV (inp_ATOM *at, int i)
int	is_P_TB_N (inp_ATOM *at, int i)
int	is_DERIV_RING2_PRRLDD_PPRDN (inp_ATOM *at, int cur_atom, int from_ord, DERIV_AT *da, DERIV_AT *da1)
int	check_arom_chain (inp_ATOM *at, int first, int first_from, int last, int len)
int	is_Dansyl (inp_ATOM *at, int cur_atom, int from_ord, DERIV_AT *da, DERIV_AT *da1)

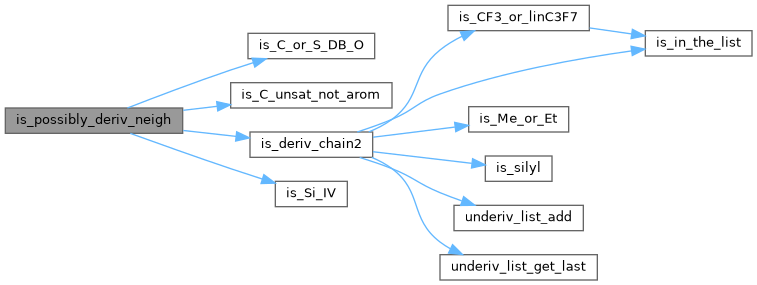

int	is_possibly_deriv_neigh (inp_ATOM *at, int iat, int iord, int type, char cFlags)
int	get_traversed_deriv_type (inp_ATOM *at, DERIV_AT *da, int k, DERIV_AT *da1, char cFlags)
int	add_to_da (DERIV_AT *da, DERIV_AT *add)
int	mark_atoms_deriv (inp_ATOM *at, DERIV_AT *da, int start, int num, char cFlags, int *pbFound)
int	count_one_bond_atoms (inp_ATOM *at, DERIV_AT *da, int start, int ord, char cFlags, int *bFound)
int	is_silyl (inp_ATOM *at, int start, int ord_prev)
int	is_silyl2 (inp_ATOM *at, int start, int from_at)
int	is_Me_or_Et (inp_ATOM *at, int start, int ord_prev)
int	is_nButyl (inp_ATOM *at, int start, int ord_prev)
int	is_CF3_or_linC3F7a (inp_ATOM *at, int start, int iat_prev)
int	is_CF3_or_linC3F7 (inp_ATOM *at, int start, int ord_prev)
int	is_phenyl (inp_ATOM *at, int start, int ord_prev)
int	is_DERIV_RING_O_or_NH_OUTSIDE_PRECURSOR (inp_ATOM *at, int start, int num_atoms, DERIV_AT *da1, int idrv, char *szUnderiv, int lenUnderiv, char *szUnderiv2, int lenUnderiv2, BIT_UNDERIV *bitUnderiv)
int	is_deriv_chain (inp_ATOM *at, int start, int num_atoms, DERIV_AT *da1, int idrv, char *szUnderiv, int lenUnderiv, char *szUnderiv2, int lenUnderiv2, BIT_UNDERIV *bitUnderiv)
int	is_deriv_chain2 (inp_ATOM *at, int start, int type, int num, int ord, int idrv, char *szUnderiv, int lenUnderiv, char *szUnderiv2, int lenUnderiv2, BIT_UNDERIV *bitUnderiv)
int	is_deriv_chain_or_ring (inp_ATOM *at, int start, int num_atoms, DERIV_AT *da1, int *idrv)
int	remove_deriv (DERIV_AT *da1, int idrv)
int	remove_deriv_mark (DERIV_AT *da1, int idrv)
int	underiv_compare (const void *p1, const void *p2)
int	underiv_list_add_two_cuts (char *szUnderivList, int lenUnderivList, char *szUnderiv, const char cDelim)
int	sort_merge_underiv (char *pSdfValue, int bOutputSdf, char *szUnderivList, char cDerivSeparator, const char *pszUnderivPrefix, const char *pszUnderivPostfix)
int	eliminate_deriv_not_in_list (inp_ATOM *at, DERIV_AT *da, int num_atoms, char *szUnderivList, int lenUnderivList, char *szUnderivList2, int lenUnderivList2, BIT_UNDERIV *bitUnderivList)
void	underiv_buf_clear (char *szUnderiv)
int	underiv_list_add (char *szUnderivList, int lenUnderivList, const char *szUnderiv, char cDelimiter)
const char *	underiv_list_get_last (const char *szUnderivList, char cDelimiter)
int	make_single_cut (inp_ATOM *at, DERIV_AT *da, int iat, int icut)
int	fill_out_bond_cuts (inp_ATOM *at, DERIV_AT *da, int num_atoms, R2C_ATPAIR *ap, int num_cuts_to_check)
int	mark_deriv_agents (inp_ATOM *at, DERIV_AT *da, int num_atoms, R2C_ATPAIR *ap, int num_cuts_to_check, AT_NUMB *pnum_comp, int *pcur_num_at)
int	replace_arom_bonds (inp_ATOM *at, int num_atoms, inp_ATOM *at2, int num_atoms2)
int	add_explicit_H (INP_ATOM_DATA *inp_cur_data)
void	free_underiv_temp_data (R2C_ATPAIR *ap, DERIV_AT *da, inp_ATOM *at2, INP_ATOM_DATA *inp_cur_data, int num_components)
void	remove_cut_derivs (int num_atoms, inp_ATOM *at, INP_ATOM_DATA *inp_cur_data, int i_component, int *errcode)
int	get_CO_opposite (inp_ATOM *at, int iat, int iord, int *iat_opposite, int *iord_opposite)
int	is_DERIV_RING_DMOX_DEOX_O (inp_ATOM *at, int cur_atom, int from_ord, DERIV_AT *da, DERIV_AT *da1)
int	is_DERIV_RING_DMOX_DEOX_N (inp_ATOM *at, int cur_atom, int from_ord, DERIV_AT *da, DERIV_AT *da1)
int	OAD_Edit_Underivatize (struct tagINCHI_CLOCK *ic, struct tagCANON_GLOBALS *pCG, ORIG_ATOM_DATA *orig_inp_data, int bOutputSdf, int bOutputReport, char *pSdfValue)
	Underivatize the original atom data (main underivatization procedure)
int	detect_r2c_Zatom (inp_ATOM *at, R2C_AT *da, int iZ)
int	cut_ring_to_chain (inp_ATOM *at, R2C_AT *da, int iZ)
int	Ring2Chain (struct tagINCHI_CLOCK *ic, struct tagCANON_GLOBALS *pCG, ORIG_ATOM_DATA *orig_inp_data)
	Convert rings to chains in the original atom data.
void	OAD_Edit_MergeComponentsAndRecreateOAD (ORIG_ATOM_DATA *orig_OrigAtomData, INP_ATOM_DATA *curr_InpAtomData, int num_components, int *errcode)
	Merge components and recreate original atom data.

Variables
static const int	DERIV_UNEXPADABLE
static const int	DERIV_REPL_N_WITH_O
static const int	DERIV_REPL_N_WITH_OH
const char *	pszDerivName []

Macro Definition Documentation

ALLOC_AP

#define ALLOC_AP

Value:

        if ( 0 < num_cuts_to_check && (lenAllocated_ap < num_cuts_to_check || !ap) ) {\
            if ( ap )\
                inchi_free( ap );\
            ap = (R2C_ATPAIR *) inchi_malloc( num_cuts_to_check * sizeof(ap[0]) );\
            if ( !ap ) {\
                ret = -1;\
                goto exit_function; /* malloc failure */\
            }\
            lenAllocated_ap = num_cuts_to_check;\
        }

CFLAG_MARK_BLOCK

#define CFLAG_MARK_BLOCK   2 /* for block detection */

CFLAG_MARK_BLOCK_INV

#define CFLAG_MARK_BLOCK_INV   ((char)~(CFLAG_MARK_BLOCK)) /* for block detection */

CFLAG_MARK_BRANCH

#define CFLAG_MARK_BRANCH   1 /* for main derivative traversal */

COUNT_ALL_NOT_DERIV

#define COUNT_ALL_NOT_DERIV   1 /* 1=> count ALL atoms that are not in deriv. agents */

DERIV_AMINE_tN

#define DERIV_AMINE_tN   0x0004 /* R1-N(-R2)-R3 tertiary amine */

DERIV_AT_LEN

#define DERIV_AT_LEN   4

DERIV_BRIDGE_NH

#define DERIV_BRIDGE_NH   0x0002 /* R1-NH-R2 amine */

DERIV_BRIDGE_O

#define DERIV_BRIDGE_O   0x0001 /* R1-O-R2 => R1-OH + HO-R2 */

DERIV_DANSYL

#define DERIV_DANSYL   0x2000 /* alcohol derivatives: R-O--SO2-C10H5-N(CH3)2 => R-OH */

DERIV_DUPLIC

#define DERIV_DUPLIC   0x0080 /* duplicated disconnection */

DERIV_NOT

#define DERIV_NOT   0x1000 /* cannot be a derivatization agent atom */

DERIV_RING

#define DERIV_RING   DERIV_RING_OUTSIDE_PRECURSOR

DERIV_RING2_OUTSIDE_PRECUR

#define DERIV_RING2_OUTSIDE_PRECUR   (DERIV_RING2_PRRLDD_OUTSIDE_PRECUR | DERIV_RING2_PPRDN_OUTSIDE_PRECUR)

DERIV_RING2_PPRDN_OUTSIDE_PRECUR

#define DERIV_RING2_PPRDN_OUTSIDE_PRECUR   0x1000 /* alcohol derivatives: R(=O)-N<C5H5 6-memb ring Piperidines; replace -N< with -OH */

DERIV_RING2_PRRLDD_OUTSIDE_PRECUR

#define DERIV_RING2_PRRLDD_OUTSIDE_PRECUR   0x0800 /* alcohol derivatives: R(=O)-N<C4H4 5-memb ring Pyrrolidides; replace -N< with -OH */

DERIV_RING_DMOX_DEOX

#define DERIV_RING_DMOX_DEOX   (DERIV_RING_DMOX_DEOX_O | DERIV_RING_DMOX_DEOX_N)

DERIV_RING_DMOX_DEOX_N

#define DERIV_RING_DMOX_DEOX_N   0x0200 /* =N- in a ring: /-O--CH2-\ DMOX, DEOX */

DERIV_RING_DMOX_DEOX_O

#define DERIV_RING_DMOX_DEOX_O   0x0400 /* -O- in a ring: R-C=N--------C<2Me or 2Et */

DERIV_RING_NH_OUTSIDE_PRECURSOR

#define DERIV_RING_NH_OUTSIDE_PRECURSOR   0x0010 /* -NH- in a ring */

DERIV_RING_O_OUTSIDE_PRECURSOR

#define DERIV_RING_O_OUTSIDE_PRECURSOR   0x0008 /* -O- in a ring */

DERIV_RING_OUTSIDE_PRECURSOR

#define DERIV_RING_OUTSIDE_PRECURSOR   (DERIV_RING_O_OUTSIDE_PRECURSOR | DERIV_RING_NH_OUTSIDE_PRECURSOR)

DERIV_RO_COX

#define DERIV_RO_COX   0x0100 /* alcohol derivatives: R-O--C(=O)C[n]F[2n+1] 0<n<4, R-O--C(=O)CH3, R-O--C(=O)-Phenyl */

DERIV_UNMARK

#define DERIV_UNMARK   0x0040 /* unmark the cut */

DERIV_X_OXIME

#define DERIV_X_OXIME   0x0020 /* comment out to disable */

IS_DA_NUM_LE

#define IS_DA_NUM_LE	(		DA,
			I,
			MX
	)		(((DA)->typ[I] && ((DA)->typ[I] & DERIV_UNEXPADABLE) == (DA)->typ[I]) || (DA)->num[I] <= (MX))

MAX_AT_DERIV

#define MAX_AT_DERIV   13 /* max. num of heavy atoms in removed derivatizing agent: RO-C(O)PheF5 */

MAX_PRRLDD_PPRDN_RING_SIZE

#define MAX_PRRLDD_PPRDN_RING_SIZE   PPRDN_RING_SIZE

MIN_AT_LEFT_DERIV

#define MIN_AT_LEFT_DERIV   2 /* was 3 before 2013-11-12; min num heavy atoms in derivative precursor = MIN_AT_LEFT_DERIV-1 */

MIN_PRRLDD_PPRDN_RING_SIZE

#define MIN_PRRLDD_PPRDN_RING_SIZE   PRRLDD_RING_SIZE

NO_ORD_VAL

#define NO_ORD_VAL   0x0037 /* not used */

NOT_AT_DERIV

#define NOT_AT_DERIV   99 /* DERIV_AT::num; rejected as > MAX_AT_DERIV */

OX_RING_SIZE

#define OX_RING_SIZE   5

PPRDN_RING_SIZE

#define PPRDN_RING_SIZE   6

PRRLDD_RING_SIZE

#define PRRLDD_RING_SIZE   5

R2C_EMPTY

#define R2C_EMPTY   127

UNDERIV_LEN

#define UNDERIV_LEN   128

UNDERIV_LEN2

#define UNDERIV_LEN2   128

UNDERIV_LIST_LEN

#define UNDERIV_LIST_LEN   2048

UNDERIV_LIST_LEN2

#define UNDERIV_LIST_LEN2   2048

UNDERIV_MAX_NUM

#define UNDERIV_MAX_NUM   512 /*max. number of records in szUnderivList */

Typedef Documentation

BIT_UNDERIV

typedef int BIT_UNDERIV

DERIV_AT

typedef struct tagDerivAttachment DERIV_AT

DerivBit

typedef enum tagDerivBit DerivBit

DerivId

typedef enum tagDerivId DerivId

R2C_AT

typedef struct tagRing2Chain R2C_AT

R2C_ATPAIR

typedef struct tagAtPair R2C_ATPAIR

Enumeration Type Documentation

tagDerivBit

enum tagDerivBit

Enumerator
DERIV_BIT_Acentonate
DERIV_BIT_Benzlidene
DERIV_BIT_BenzOX
DERIV_BIT_BuBorate
DERIV_BIT_Dansyl
DERIV_BIT_DEOX
DERIV_BIT_DMOX
DERIV_BIT_EtBorate
DERIV_BIT_EtOX
DERIV_BIT_HFB
DERIV_BIT_MeBorate
DERIV_BIT_MOX
DERIV_BIT_PFB
DERIV_BIT_PFP
DERIV_BIT_Piperidine
DERIV_BIT_Pyrrolidide
DERIV_BIT_TBDMS
DERIV_BIT_TFA
DERIV_BIT_TMS
DERIV_BIT_Unknown
DERIV_BIT_Acetate
DERIV_BIT_Benzoate
DERIV_ID_NUMBER

tagDerivId

enum tagDerivId

Enumerator
DERIV_ID_Acentonate
DERIV_ID_Benzlidene
DERIV_ID_BenzOX
DERIV_ID_BuBorate
DERIV_ID_Dansyl
DERIV_ID_DEOX
DERIV_ID_DMOX
DERIV_ID_EtBorate
DERIV_ID_EtOX
DERIV_ID_HFB
DERIV_ID_MeBorate
DERIV_ID_MOX
DERIV_ID_PFB
DERIV_ID_PFP
DERIV_ID_Piperidine
DERIV_ID_Pyrrolidide
DERIV_ID_TBDMS
DERIV_ID_TFA
DERIV_ID_TMS
DERIV_ID_Unknown
DERIV_ID_Acetate
DERIV_ID_Benzoate

Function Documentation

add_explicit_H()

int add_explicit_H

(

INP_ATOM_DATA *

inp_cur_data

)

Here is the caller graph for this function:

add_inp_ATOM()

int add_inp_ATOM	(	inp_ATOM *	at,
		int	len_at,
		int	len_cur,
		inp_ATOM *	add,
		int	len_add
	)

Here is the caller graph for this function:

add_to_da()

int add_to_da	(	DERIV_AT *	da,
		DERIV_AT *	add
	)

Here is the caller graph for this function:

check_arom_chain()

int check_arom_chain	(	inp_ATOM *	at,
		int	first,
		int	first_from,
		int	last,
		int	len
	)

Here is the caller graph for this function:

cmp_r2c_atpair()

int cmp_r2c_atpair	(	const void *	p1,
		const void *	p2
	)

Here is the caller graph for this function:

count_one_bond_atoms()

int count_one_bond_atoms	(	inp_ATOM *	at,
		DERIV_AT *	da,
		int	start,
		int	ord,
		char	cFlags,
		int *	bFound
	)

Here is the call graph for this function:

Here is the caller graph for this function:

cut_ring_to_chain()

int cut_ring_to_chain	(	inp_ATOM *	at,
		R2C_AT *	da,
		int	iZ
	)

Here is the call graph for this function:

Here is the caller graph for this function:

detect_r2c_Zatom()

int detect_r2c_Zatom	(	inp_ATOM *	at,
		R2C_AT *	da,
		int	iZ
	)

Here is the caller graph for this function:

DisconnectInpAtBond()

int DisconnectInpAtBond	(	inp_ATOM *	at,
		AT_NUMB *	nOldCompNumber,
		int	iat,
		int	neigh_ord
	)

Here is the call graph for this function:

Here is the caller graph for this function:

eliminate_deriv_not_in_list()

int eliminate_deriv_not_in_list	(	inp_ATOM *	at,
		DERIV_AT *	da,
		int	num_atoms,
		char *	szUnderivList,
		int	lenUnderivList,
		char *	szUnderivList2,
		int	lenUnderivList2,
		BIT_UNDERIV *	bitUnderivList
	)

Here is the call graph for this function:

Here is the caller graph for this function:

ExtractConnectedComponent()

int ExtractConnectedComponent	(	inp_ATOM *	at,
		int	num_at,
		int	component_number,
		inp_ATOM *	component_at
	)

Here is the caller graph for this function:

fill_out_bond_cuts()

int fill_out_bond_cuts	(	inp_ATOM *	at,
		DERIV_AT *	da,
		int	num_atoms,
		R2C_ATPAIR *	ap,
		int	num_cuts_to_check
	)

Here is the call graph for this function:

Here is the caller graph for this function:

free_underiv_temp_data()

void free_underiv_temp_data	(	R2C_ATPAIR *	ap,
		DERIV_AT *	da,
		inp_ATOM *	at2,
		INP_ATOM_DATA *	inp_cur_data,
		int	num_components
	)

Here is the call graph for this function:

Here is the caller graph for this function:

get_CO_opposite()

int get_CO_opposite	(	inp_ATOM *	at,
		int	iat,
		int	iord,
		int *	iat_opposite,
		int *	iord_opposite
	)

get_traversed_deriv_type()

int get_traversed_deriv_type	(	inp_ATOM *	at,
		DERIV_AT *	da,
		int	k,
		DERIV_AT *	da1,
		char	cFlags
	)

Here is the call graph for this function:

Here is the caller graph for this function:

has_atom_pair()

int has_atom_pair	(	R2C_ATPAIR *	ap,
		int	num_ap,
		AT_NUMB	at1,
		AT_NUMB	at2
	)

Here is the call graph for this function:

has_atom_pair_seq()

int has_atom_pair_seq	(	R2C_ATPAIR *	ap,
		int	num_ap,
		AT_NUMB	at1,
		AT_NUMB	at2
	)

Here is the caller graph for this function:

is_Aryl()

int is_Aryl	(	inp_ATOM *	at,
		int	outside_point,
		int	attachment_pont
	)

is_C_Alk()

int is_C_Alk	(	inp_ATOM *	at,
		int	i,
		char	cFlags
	)

is_C_DB_O()

int is_C_DB_O	(	inp_ATOM *	at,
		int	i
	)

Here is the caller graph for this function:

is_C_or_S_DB_O()

int is_C_or_S_DB_O	(	inp_ATOM *	at,
		int	i
	)

Here is the caller graph for this function:

is_C_unsat_not_arom()

int is_C_unsat_not_arom	(	inp_ATOM *	at,
		int	i
	)

Here is the caller graph for this function:

is_CF3_or_linC3F7()

int is_CF3_or_linC3F7	(	inp_ATOM *	at,
		int	start,
		int	ord_prev
	)

Here is the call graph for this function:

Here is the caller graph for this function:

is_CF3_or_linC3F7a()

int is_CF3_or_linC3F7a	(	inp_ATOM *	at,
		int	start,
		int	iat_prev
	)

Here is the call graph for this function:

Here is the caller graph for this function:

is_Dansyl()

int is_Dansyl	(	inp_ATOM *	at,
		int	cur_atom,
		int	from_ord,
		DERIV_AT *	da,
		DERIV_AT *	da1
	)

Here is the call graph for this function:

Here is the caller graph for this function:

is_deriv_chain()

int is_deriv_chain	(	inp_ATOM *	at,
		int	start,
		int	num_atoms,
		DERIV_AT *	da1,
		int	idrv,
		char *	szUnderiv,
		int	lenUnderiv,
		char *	szUnderiv2,
		int	lenUnderiv2,
		BIT_UNDERIV *	bitUnderiv
	)

Here is the call graph for this function:

Here is the caller graph for this function:

is_deriv_chain2()

int is_deriv_chain2	(	inp_ATOM *	at,
		int	start,
		int	type,
		int	num,
		int	ord,
		int	idrv,
		char *	szUnderiv,
		int	lenUnderiv,
		char *	szUnderiv2,
		int	lenUnderiv2,
		BIT_UNDERIV *	bitUnderiv
	)

Here is the call graph for this function:

Here is the caller graph for this function:

is_deriv_chain_or_ring()

int is_deriv_chain_or_ring	(	inp_ATOM *	at,
		int	start,
		int	num_atoms,
		DERIV_AT *	da1,
		int *	idrv
	)

Here is the call graph for this function:

Here is the caller graph for this function:

is_DERIV_RING2_PRRLDD_PPRDN()

int is_DERIV_RING2_PRRLDD_PPRDN	(	inp_ATOM *	at,
		int	cur_atom,
		int	from_ord,
		DERIV_AT *	da,
		DERIV_AT *	da1
	)

Here is the caller graph for this function:

is_DERIV_RING_DMOX_DEOX_N()

int is_DERIV_RING_DMOX_DEOX_N	(	inp_ATOM *	at,
		int	cur_atom,
		int	from_ord,
		DERIV_AT *	da,
		DERIV_AT *	da1
	)

Here is the call graph for this function:

Here is the caller graph for this function:

is_DERIV_RING_DMOX_DEOX_O()

int is_DERIV_RING_DMOX_DEOX_O	(	inp_ATOM *	at,
		int	cur_atom,
		int	from_ord,
		DERIV_AT *	da,
		DERIV_AT *	da1
	)

Here is the call graph for this function:

Here is the caller graph for this function:

is_DERIV_RING_O_or_NH_OUTSIDE_PRECURSOR()

int is_DERIV_RING_O_or_NH_OUTSIDE_PRECURSOR	(	inp_ATOM *	at,
		int	start,
		int	num_atoms,
		DERIV_AT *	da1,
		int	idrv,
		char *	szUnderiv,
		int	lenUnderiv,
		char *	szUnderiv2,
		int	lenUnderiv2,
		BIT_UNDERIV *	bitUnderiv
	)

Here is the call graph for this function:

Here is the caller graph for this function:

is_Ethyl()

int is_Ethyl	(	inp_ATOM *	at,
		int	outside_point,
		int	attachment_point
	)

Here is the call graph for this function:

Here is the caller graph for this function:

is_Me_or_Et()

int is_Me_or_Et	(	inp_ATOM *	at,
		int	start,
		int	ord_prev
	)

Here is the caller graph for this function:

is_Methyl()

int is_Methyl	(	inp_ATOM *	at,
		int	attachment_point
	)

Here is the caller graph for this function:

is_Methyl_or_Etyl()

int is_Methyl_or_Etyl	(	inp_ATOM *	at,
		int	outside_point,
		int	attachment_point
	)

Here is the call graph for this function:

Here is the caller graph for this function:

is_nButyl()

int is_nButyl	(	inp_ATOM *	at,
		int	start,
		int	ord_prev
	)

Here is the caller graph for this function:

is_P_TB_N()

int is_P_TB_N	(	inp_ATOM *	at,
		int	i
	)

is_PentaFluoroPhenyl()

int is_PentaFluoroPhenyl	(	inp_ATOM *	at,
		int	outside_point,
		int	attachment_point
	)

Here is the caller graph for this function:

is_Phenyl()

int is_Phenyl	(	inp_ATOM *	at,
		int	outside_point,
		int	attachment_point
	)

Here is the caller graph for this function:

is_phenyl()

int is_phenyl	(	inp_ATOM *	at,
		int	start,
		int	ord_prev
	)

Here is the caller graph for this function:

is_possibly_deriv_neigh()

int is_possibly_deriv_neigh	(	inp_ATOM *	at,
		int	iat,
		int	iord,
		int	type,
		char	cFlags
	)

Here is the call graph for this function:

Here is the caller graph for this function:

is_Saturated_C()

int is_Saturated_C	(	inp_ATOM *	at,
		int	attachment_pont
	)

is_Si_IV()

int is_Si_IV	(	inp_ATOM *	at,
		int	i
	)

Here is the caller graph for this function:

is_silyl()

int is_silyl	(	inp_ATOM *	at,
		int	start,
		int	ord_prev
	)

Here is the caller graph for this function:

is_silyl2()

int is_silyl2	(	inp_ATOM *	at,
		int	start,
		int	from_at
	)

Here is the caller graph for this function:

make_single_cut()

int make_single_cut	(	inp_ATOM *	at,
		DERIV_AT *	da,
		int	iat,
		int	icut
	)

Here is the call graph for this function:

Here is the caller graph for this function:

mark_arom_bonds()

int mark_arom_bonds	(	struct tagINCHI_CLOCK *	ic,
		struct tagCANON_GLOBALS *	pCG,
		inp_ATOM *	at,
		int	num_atoms
	)

Here is the call graph for this function:

Here is the caller graph for this function:

mark_atoms_ap()

int mark_atoms_ap	(	inp_ATOM *	at,
		AT_NUMB	start,
		R2C_ATPAIR *	ap,
		int	num_ap,
		int	num,
		AT_NUMB	cFlags
	)

Here is the call graph for this function:

Here is the caller graph for this function:

mark_atoms_cFlags()

int mark_atoms_cFlags	(	inp_ATOM *	at,
		int	start,
		int	num,
		char	cFlags
	)

Here is the call graph for this function:

Here is the caller graph for this function:

mark_atoms_deriv()

int mark_atoms_deriv	(	inp_ATOM *	at,
		DERIV_AT *	da,
		int	start,
		int	num,
		char	cFlags,
		int *	pbFound
	)

Here is the call graph for this function:

Here is the caller graph for this function:

mark_deriv_agents()

int mark_deriv_agents	(	inp_ATOM *	at,
		DERIV_AT *	da,
		int	num_atoms,
		R2C_ATPAIR *	ap,
		int	num_cuts_to_check,
		AT_NUMB *	pnum_comp,
		int *	pcur_num_at
	)

Here is the call graph for this function:

Here is the caller graph for this function:

MarkRingSystemsInp()

int MarkRingSystemsInp	(	inp_ATOM *	at,
		int	num_atoms,
		int	start
	)

Here is the caller graph for this function:

OAD_Edit_MergeComponentsAndRecreateOAD()

void OAD_Edit_MergeComponentsAndRecreateOAD	(	ORIG_ATOM_DATA *	orig_OrigAtomData,
		INP_ATOM_DATA *	curr_InpAtomData,
		int	num_components,
		int *	errcode
	)

Merge components and recreate original atom data.

Parameters

orig_OrigAtomData	Pointer to original atom data structure
curr_InpAtomData	Pointer to current input atom data structure
num_components	Number of components
errcode	Pointer to error code

Here is the call graph for this function:

Here is the caller graph for this function:

OAD_Edit_Underivatize()

int OAD_Edit_Underivatize	(	struct tagINCHI_CLOCK *	ic,
		struct tagCANON_GLOBALS *	pCG,
		ORIG_ATOM_DATA *	orig_inp_data,
		int	bOutputSdf,
		int	bOutputReport,
		char *	pSdfValue
	)

Underivatize the original atom data (main underivatization procedure)

Parameters

ic	Pointer to INCHI_CLOCK structure
pCG	Pointer to CANON_GLOBALS structure
orig_inp_data	Pointer to original atom data structure
bOutputSdf	Flag indicating whether to output SDF
bOutputReport	Flag indicating whether to output report
pSdfValue	Pointer to SDF value

Returns

int Status code

Here is the call graph for this function:

Here is the caller graph for this function:

remove_cut_derivs()

void remove_cut_derivs	(	int	num_atoms,
		inp_ATOM *	at,
		INP_ATOM_DATA *	inp_cur_data,
		int	i_component,
		int *	errcode
	)

Here is the call graph for this function:

Here is the caller graph for this function:

remove_deriv()

int remove_deriv	(	DERIV_AT *	da1,
		int	idrv
	)

Here is the caller graph for this function:

remove_deriv_mark()

int remove_deriv_mark	(	DERIV_AT *	da1,
		int	idrv
	)

Here is the caller graph for this function:

replace_arom_bonds()

int replace_arom_bonds	(	inp_ATOM *	at,
		int	num_atoms,
		inp_ATOM *	at2,
		int	num_atoms2
	)

Here is the call graph for this function:

Here is the caller graph for this function:

Ring2Chain()

int Ring2Chain	(	struct tagINCHI_CLOCK *	ic,
		struct tagCANON_GLOBALS *	pCG,
		ORIG_ATOM_DATA *	orig_inp_data
	)

Convert rings to chains in the original atom data.

Parameters

ic	Pointer to INCHI_CLOCK structure
pCG	Pointer to CANON_GLOBALS structure
orig_inp_data	Pointer to original atom data structure

Returns

int Status code or the number of ring cuts made

Here is the call graph for this function:

Here is the caller graph for this function:

set_R2C_el_numbers()

void set_R2C_el_numbers

(

void

)

sort_merge_underiv()

int sort_merge_underiv	(	char *	pSdfValue,
		int	bOutputSdf,
		char *	szUnderivList,
		char	cDerivSeparator,
		const char *	pszUnderivPrefix,
		const char *	pszUnderivPostfix
	)

Here is the call graph for this function:

Here is the caller graph for this function:

subtract_DT_from_num_H()

int subtract_DT_from_num_H	(	int	num_atoms,
		inp_ATOM *	at
	)

Here is the caller graph for this function:

underiv_buf_clear()

void underiv_buf_clear

(

char *

szUnderiv

)

Here is the caller graph for this function:

underiv_compare()

int underiv_compare	(	const void *	p1,
		const void *	p2
	)

Here is the caller graph for this function:

underiv_list_add()

int underiv_list_add	(	char *	szUnderivList,
		int	lenUnderivList,
		const char *	szUnderiv,
		char	cDelimiter
	)

Here is the caller graph for this function:

underiv_list_add_two_cuts()

int underiv_list_add_two_cuts	(	char *	szUnderivList,
		int	lenUnderivList,
		char *	szUnderiv,
		const char	cDelim
	)

Here is the call graph for this function:

Here is the caller graph for this function:

underiv_list_get_last()

const char * underiv_list_get_last	(	const char *	szUnderivList,
		char	cDelimiter
	)

Here is the caller graph for this function:

unmark_atoms_cFlags()

int unmark_atoms_cFlags	(	inp_ATOM *	at,
		int	start,
		int	num,
		char	cFlags,
		char	cInvFlags
	)

Here is the call graph for this function:

Here is the caller graph for this function:

UnMarkDisconnectedComponents()

int UnMarkDisconnectedComponents

(

ORIG_ATOM_DATA *

orig_inp_data

)

Here is the caller graph for this function:

UnMarkOneComponent()

int UnMarkOneComponent	(	inp_ATOM *	at,
		int	num_atoms
	)

Here is the caller graph for this function:

UnMarkOtherIndicators()

int UnMarkOtherIndicators	(	inp_ATOM *	at,
		int	num_atoms
	)

Here is the caller graph for this function:

UnMarkRingSystemsInp()

int UnMarkRingSystemsInp	(	inp_ATOM *	at,
		int	num_atoms
	)

Here is the caller graph for this function:

Variable Documentation

DERIV_REPL_N_WITH_O

const int DERIV_REPL_N_WITH_O

static

Initial value:

= 0

| DERIV_X_OXIME


| DERIV_RING_DMOX_DEOX_N

DERIV_REPL_N_WITH_OH

const int DERIV_REPL_N_WITH_OH

static

Initial value:

= 0

| DERIV_RING2_PRRLDD_OUTSIDE_PRECUR


| DERIV_RING2_PPRDN_OUTSIDE_PRECUR

DERIV_UNEXPADABLE

const int DERIV_UNEXPADABLE

static

Initial value:

= 0

| DERIV_X_OXIME


| ( DERIV_RING_DMOX_DEOX_O | DERIV_RING_DMOX_DEOX_N )



| DERIV_RING2_PRRLDD_OUTSIDE_PRECUR


| DERIV_RING2_PPRDN_OUTSIDE_PRECUR


| DERIV_DANSYL

pszDerivName

const char* pszDerivName[]
